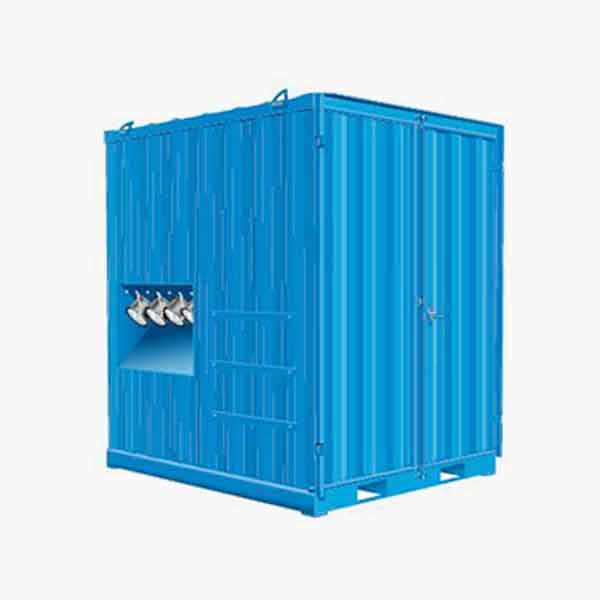

For welding extraction, on-torch or nozzles. Semiportable installations. Unit including Nederman FlexFilter cyclone for coarse separation. Manual start/stop. The units have four 160mm (6.3 in) diam. for the C-PAK 20-2500 vacuum inlets with connection flanges suitable for the Nederman PAK hose and coupler system. Flow restrictor and combined back flush/start-up valve is standard.
| Applications | Fumes |
| Capacity (max airflow m3/h) | 2500 at – 20 kPa (3900 at rated motor power) |
| Certifications | CE |
| Installation | Outdoor, Indoor |
| Max vaccum (kPa) | 22 |
| Filter type | Bag |
| Max vaccum (kPa) | 22 |
| Noise level ((dB)A) | 77 |
| No of phases | 3 |
| Power (kW) | 37 |
| Weight (kg) | 1420 |
