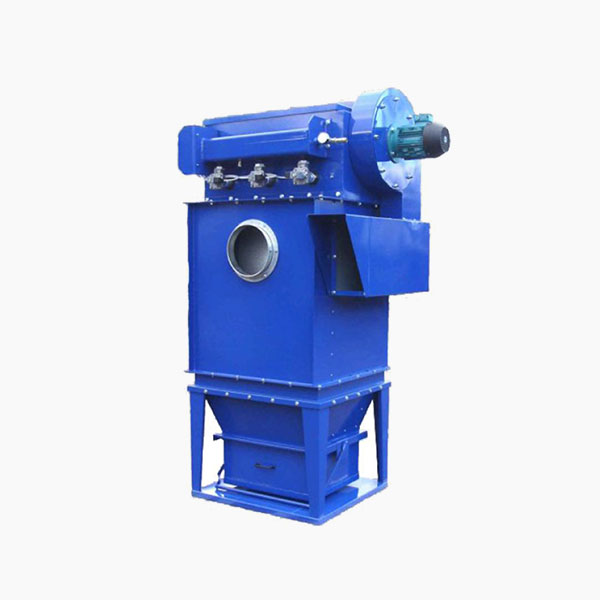

Suitable for many different applications that generate light to medium volumes of any dust. The MJC Mini range of compact reverse jet tubular cartridge filters was developed for continuous operation in industrial process filtration and dust collection applications – incorporating Nederman’s patented UniClean cartridge technology for maximum cleaning efficiency and extended life.
Key features
Standard filter range from 4 to 40m2 (43-430ft2)
Robust weatherproof fully welded steel construction
Space saving integral fans from 0.75 to 3.0kW (1-4hp)
4.0kW (5hp) higher pressure fan available
ATEX compliant features for St1, St2 and St3 dusts
Integral pre-separation chamber, cross flow / down flow inlet air pattern
Modular interchangeable assemblies
Typical dust control and process applications:
| Applications | Dust, Fumes |
| Capacity (max airflow m3/h) | 3600 |
| Certifications | CE, EX |
| Compressed air requirement | 5 to 5,5 bar |
| Dustbin volume (l) | 75 or 150 l |
| Filter Area (m2) | 4 to 40 |
| Filter cleaning method | Pulse jet |
| Installation | Indoor, Outdoor |
| Material | Robust construction in 2.5 mm thick steel, fully welded and painted |
| Operating Temperature | -20 to 80 Dec. C |
| Suitable for combustable dust | Yes |
| Working pressure (kPa) | -8,0 to 2,0 |
| Filter type | Cartridge |
